Full magnetotherapy.

PMT Qs is the ergonomic and easy to use device, equipped with trolley, bed and an innovative design, designed for the treatment of different body areas such as the spine, limbs, hips and shoulders, ensuring the utmost comfort to the patient during therapy.

The PMT Qs devices generate pulsed magnetic fields at extremely low frequency (ELF - Extremely Low Frequency) and at low intensity, which are able to pass through the body, acting on all tissues (muscle, bone, nerve, epithelial, etc.). Effective even in depth, they are not invasive and do not cause pain.

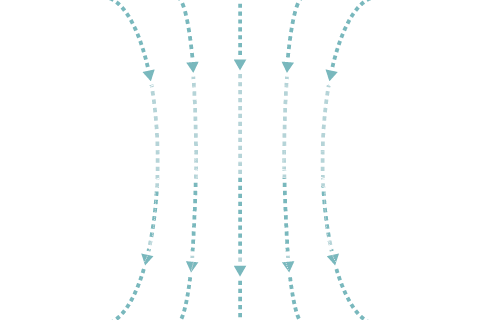

PMT Qs allows applying magnetic fields in a direction parallel to the longitudinal axis of the body, through the use of solenoids, or perpendicularly to the surface to be treated, through the use of the Flexa applicators, particularly suitable for localised treatments thanks to their flexible conformation.

Testo a Destra
Immagine 60%/Testo 40%

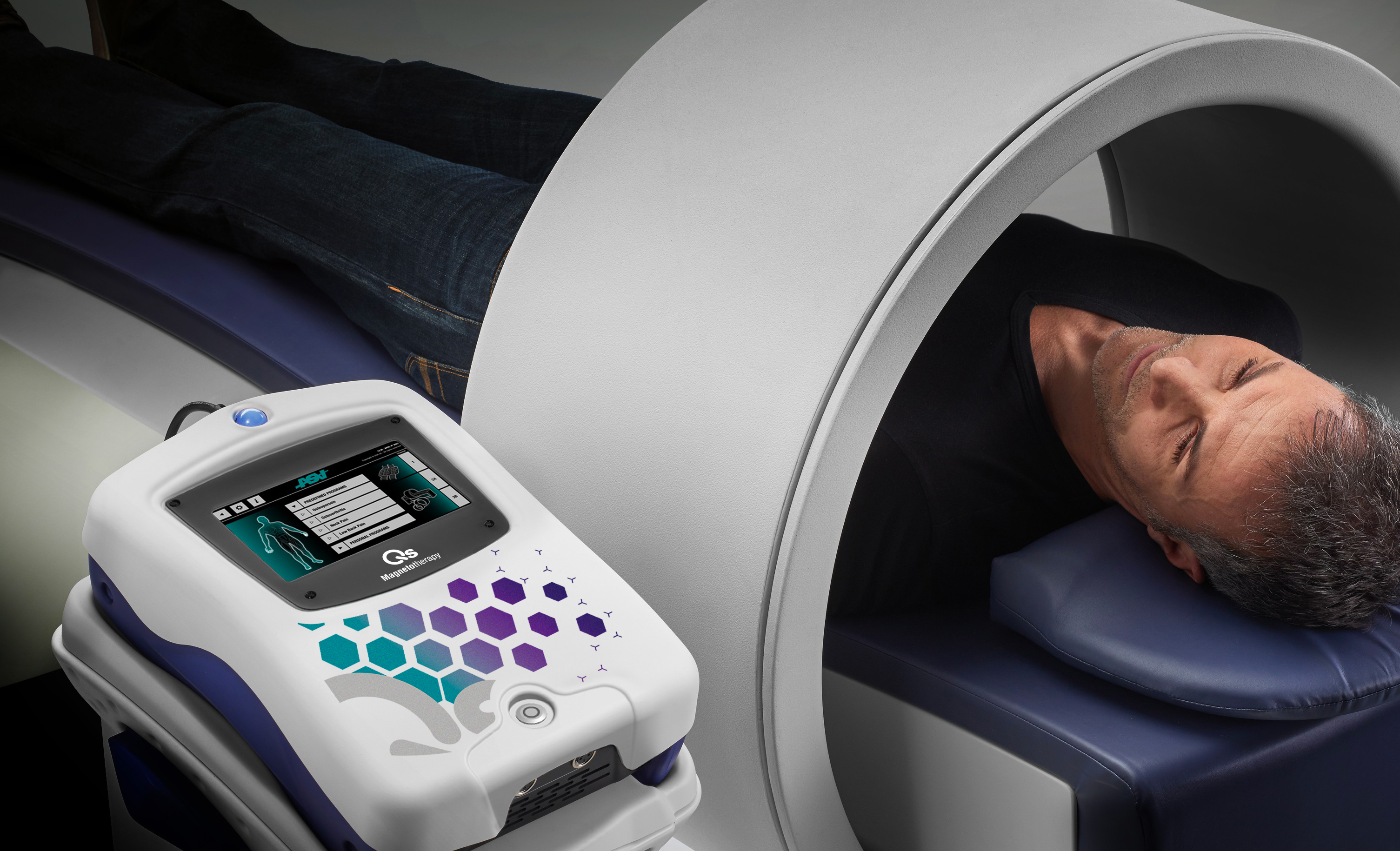

PMT Qs Total body treatment

The electromechanical movement system automatically places the solenoid on the area to be treated (5 positions) returning to the initial position at the end of the therapy, with a saving of the operator's time. There is also the possibility of carrying out the automatic scanning treatment in a continuous manner between two established positions, or with a defined dwelling time on each of the two positions.

Testo a Destra
Immagine 30%/Testo 60%
ASA Magnetotherapy - User interface

User interface.

Colour capacitive touch screen (7") to facilitate interaction with the user.

Testo a Destra
Immagine 30%/Testo 60%
ASA Magnetotherapy - validated protocols

EU MDR validated protocols*.

Based on scientific and clinical evidence in accordance with the EU MDR, the software includes a comprehensive list of medical indications, from skin to bones:

  • Osteoarticular disorders (Osteoporosis, Osteoarthritis)
  • Musculoskeletal pain (Low Back Pain, Neck Pain)
  • Peripheral neuropathies (Diabetic polyneuropathy, Carpal tunnel syndrome, facial paralysis)
  • Tissue healing (Diabetic foot ulcer)

Pre-set protocols and personal settings have never been easier to use, allowing treatment of a wide range of clinical conditions.

Testo a Destra
Immagine 30%/Testo 60%
ASA Magnetotherapy - Patient Comfort

Comfortable therapy.

Robotised bed with silenced and sliding solenoid movement system to ensure maximum stability and patient comfort during treatment.

Tutto Schermo
Trattamento magnetoterapia PMT Qs
Testo a Destra
Immagine 30%/Testo 60%
ASA Magnetotherapy - Check up Service

Check-up and statistics.

Through dynamic QR codes, the user can monitor device usage statistics in real time and send precise diagnostic data to ASA's Service department.

Testo a Destra
Immagine 30%/Testo 60%
ASA Magnetotherapy - USB update

Software update via USB.

New protocols coming soon? Every new generation Qs Magnetotherapy device is equipped with a USB port to easily update the software.


Technical characteristics
  • 3 completely independent channels
  • 6 outputs (2 for each channel)
  • Frequency from 0.5 to 100 Hz
  • Magnetic field intensity variable from 5 to 100%
  • Treatment time from 1 to 99 min and continuous
  • Pre-set, adjustable, saveable programmes
  • Backlit LCD
  • Membrane keyboard

ALARMS AND SAFETY FEATURES

  • Therapy start and therapy end acoustic signal
  • Language option
  • Machine status signals and alarms

INCLUDED ACCESSORIES

  • Unit carrying trolley
  • Carry case

SIZE AND WEIGHT

  • Generator: 28 x 38 x 13 cm (W x D x H) - 3 kg
  • Unit carrying trolley - 63 x 54 x 85 (H) cm - 17 kg
  • Flexa applicator: 36 x 21 x 2 cm (W x D x H) - 1,2 kg

POWER SUPPLY

  • 100/240V±10% 50/60Hz 850VA max

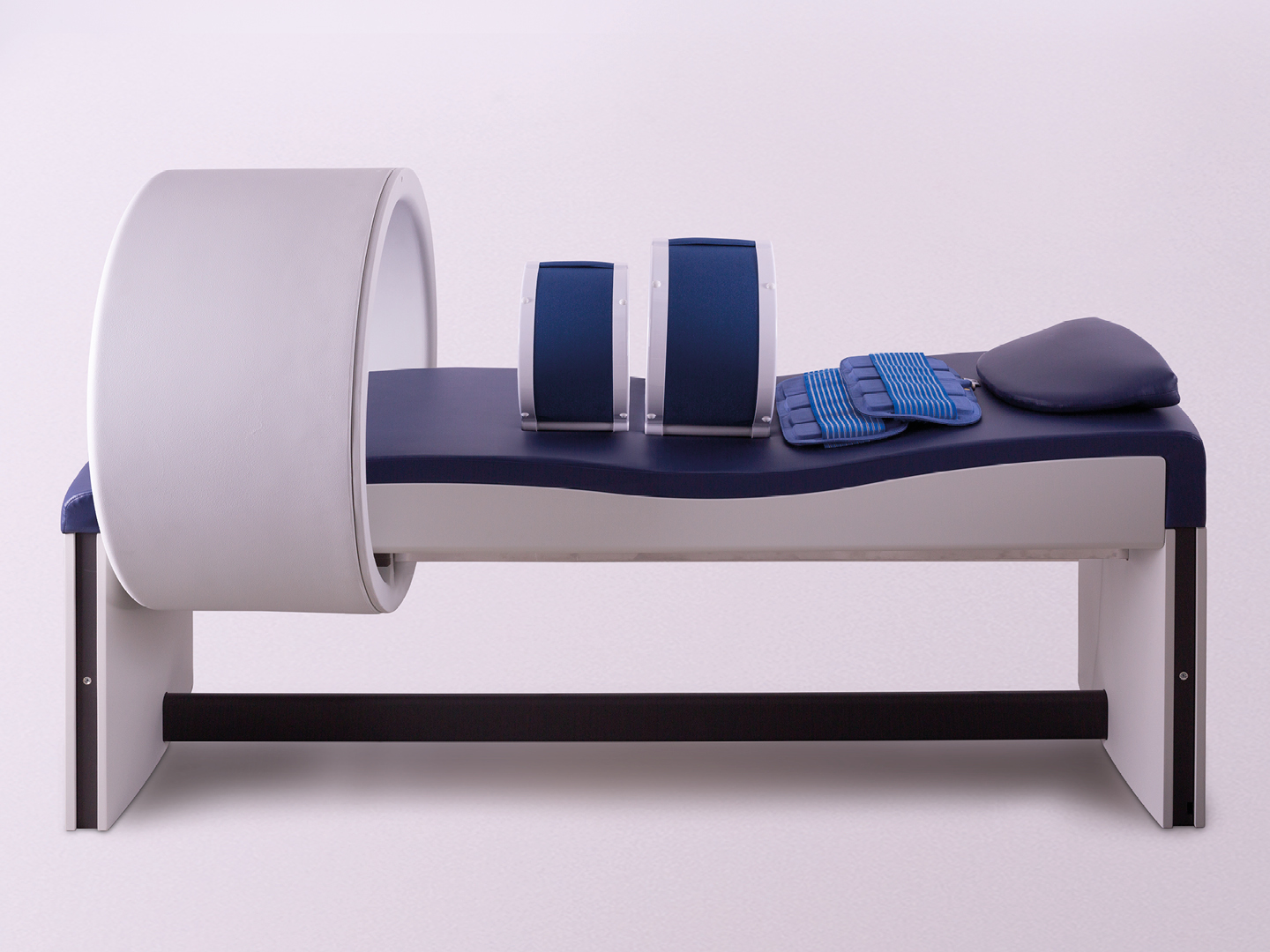

COUCH WITH MANUAL SLIDING SOLENOID Ø 80 cm
Solenoid slides manually on aluminium runners with safety block
Size and weight:
Solenoid: Ø 80 cm, depth 40 cm – 25 Kg
Couch: 188 x 55 x 72 cm (W x D x H) – 50 Kg

MOTORIZED COUCH WITH SOLENOID Ø 80 cm
Electromechanical system for solenoid movement managed by microprocessor
Size and weight:
Solenoid: Ø 80 cm, depth 40 cm – 25 Kg
Couch: 188 x 55 x 72 cm (W x D x H) - 55 kg
Power Supply: 100/240V±10% 50/60Hz 150VA max

OPTIONAL ACCESSORIES

  • Portable solenoid Ø 30 cm
    Dimensions and weight: depth 21 cm – 6,5 Kg
  • Portable solenoid Ø 50 cm
    Dimensions and weight: depth 34 cm – 11,5 Kg
Equipment and security alarms
  • Trolley-Carrello porta strumento
  • Borsa porta strumento
  • Segnale acustico di inizio e fine terapia
  • Cambio lingua
  • Avvisi e allarmi stato macchina
Specifications

LETTO MANUALE CON SOLENOIDE Ø 80 cm
Scorrimento manuale con solenoide su guide in alluminio con blocco di sicurezza
Dimensioni e peso:
Solenoide: Ø 80 cm, profondità 40 cm - 25 kg
Letto: 188 x 55 x 72 cm (L x P x H) - 50 kg

LETTO MOTORIZZATO CON SOLENOIDE Ø 80 cm
Sistema di movimentazione elettromeccanico del solenoide gestito da microprocessore
Dimensioni e peso:
Solenoide: Ø 80 cm, profondità 40 cm - 25 kg
Letto: 188 x 55 x 72 cm (L x P x H) - 55 kg

  • Generatore: 28 x 38 x 13 cm (L x P x H) - 3 kg
  • Carrello porta strumento: 63 x 54 x 85 (H) cm - 17 kg
  • Applicatore Flexa: 36 x 21 x 2 cm (L x P x H) - 1,2 kg
  • Alimentazione: 100/240V±10% 50/60Hz 850VA max
  • Accessori opzionali:
    Solenoide portatile Ø 30 cm: profondità 22 cm - 6,5 kg
    Solenoide portatile Ø 50 cm: profondità 35 cm - 11,5 kg
Magnetotherapy

Magnetotherapy

The functioning of ASA Magnetotherapy, based on the scientific principles of ELF (Extremely Low Frequency 1–100 Hz) pulsed magnetic fields, is characterized by low frequency and low intensity.
