Reward your passion.

M-Hi inherits the mechanisms of action of MLS®, preserving the scientific evidence of its mechanisms of action, as well as the safety of a globally established treatment.
No more struggling with complicated equipment or wasting time on cumbersome setups. Our intuitive user-friendly M-Hi has been designed and manufactured in Italy, with clinicians like you in mind.

Please accept statistics cookies to watch this video.
Testo a Destra
Immagine 30%/Testo 60%
M-Hi laser device - efficient

Efficient.

Patented technology, scientifically and clinically validated.

  • M-Hi is efficient in run-time and over time, thanks to advanced internal sensors that ensure durability and stability.
  • With +100 scientific publications and +20,000 devices installed all around the world, the patented MLS® Laser Therapy is scientifically and clinically proven.
Testo a Destra
Immagine 30%/Testo 60%
M-Hi laser device - safe

Safe.

Reliability in your hands.

  • M-Hi inherits the mechanisms of action of MLS®, evolving its technological features while delivering validated state-of-the-art protocols.
  • Applying the most powerful protocol (es. osteoarthritis) in both Point-by-Point and Scan modality, M-Hi delivers the right energy mix to the target tissues through a pleasant feeling: always far from reaching the thermal damage threshold​.
Testo a Destra
Immagine 30%/Testo 60%
M-Hi laser device - Versatile

Versatile.

Suitable to all clinical environments and methods, for an intensive daily use.

  • Lightweight: ergonomic, easy to handle and to operate, M-Hi is always at your side.
  • Cordless: thanks to its interchangeable batteries, M-Hi ensures hours of treatments and freedom of movement.
  • Long lasting & High performing battery: M-Hi covers the entire working day without the need for recharging (at least 20 patients per day, for an average of 10min per patient).
Please accept statistics cookies to watch this video.
Testo a Destra
Immagine 30%/Testo 60%
M-Hi laser device - adaptive

Adaptive.

Focus on your patients: M-Hi automatically adapts the protocols to your needs.

Thanks to the patented system of automatic lens recognition and parameters adjustment, M-Hi adapts the protocol to ensure the desired dosage values. The tissue-targeted protocols available for all body districts are extremely easy to follow: let them guide you to immediate results.

Testo a Destra
Immagine 30%/Testo 60%
M-Hi laser device - accurate

Accurate.

No more guesswork: track the dose, objectify your therapy and replicate the results.

Dosage (J/cm2): Track the energy delivered per unit of treatment surface (J/cm2).

Evidence-based Medicine.

Safety and effectiveness of MLS® Laser Therapy are constantly proven at ASAcampus, the Joint Laboratory between ASA Research division and the Department of Biomedical and Clinical Experimental Science at the University of Florence – Italy, directed by Dr. Monica Monici.

Medical indications:

  • Osteoarthritis1
  • Rheumatoid Arthritis2
  • Bursitis3
  • Sprain/Contusion4
  • Tendinopathies5
  • Myalgia/Contracture (from myofascial pain syndrome, trigger points, muscle spasms, postural or traumatic causes) 6

1 From mild to moderate stages (up to 3rd grade) with high level of clinical evidence on knee, moderate on shoulder, wrist, hip, ankle, lumbar region;
2 From very low to severe stages with moderate level of clinical evidence on hand;
3From mild to severe pain with moderate level of clinical evidence on elbow, knee, ankle, toe;
4 From mild to moderate injury (up to 2nd grade sprain, without complete ligament tear) with moderate level of clinical evidence on knee, ankle, wrist, finger;
5 From mild to severe pain and disability levels with moderate level of clinical evidence on shoulder, elbow, wrist, finger, knee, ankle, foot;
6 From mild to severe pain and disability levels with moderate/moderate-high level of clinical evidence on shoulder, cervical, lumbar and temporomandibular regions.


Tailored treatments.

Whether you wish to treat large areas, trigger points, intra-articular windows in close contact or at a distance, M-Hi is equipped with the optical terminal that fits your needs.

  • Ø 2 cm collimated lens - 3 cm2 target area: versatile lens suitable for any type of application.
  • Ø 5 cm collimated lens - 20 cm2 target area: homogeneous irradiation of large volumes of tissue in a short time, from contact up to 30 cm distance.
  • Ø 4 mm lens - 0.13 cm2 target area: conical light guide designed for rapid, targeted and painless laser puncture treatments.
  • Ø 8 mm lens - 0.5 cm2 target area: curved light guide ideal for treating very localised and hard-to-reach painful areas, such as facial or interdigital points.

Modular device configuration

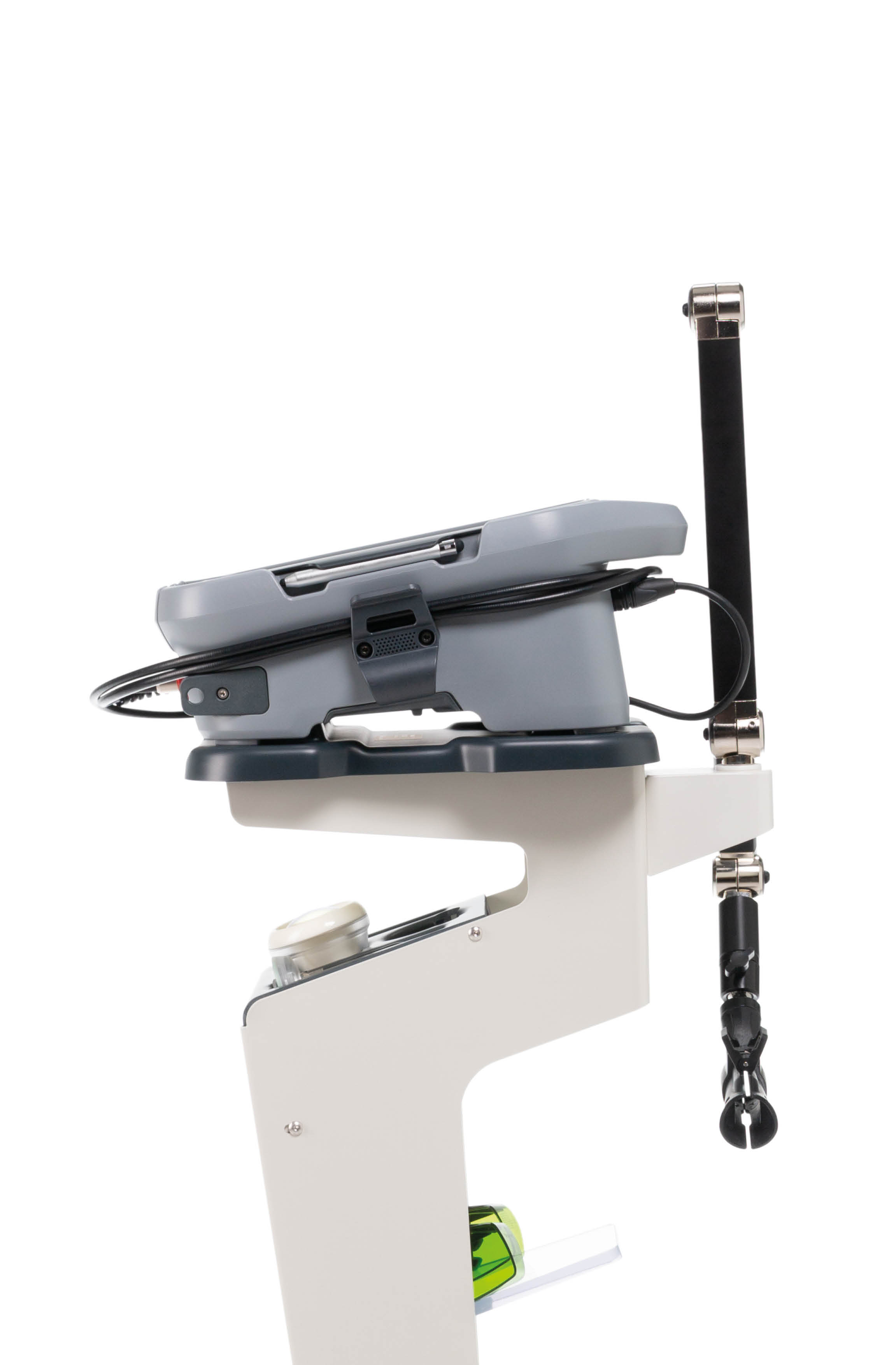

While the trolley allows swift movements inside the clinic , the handpiece holder arm ensures precise positioning on different body targets on all patients for a fixed point use.

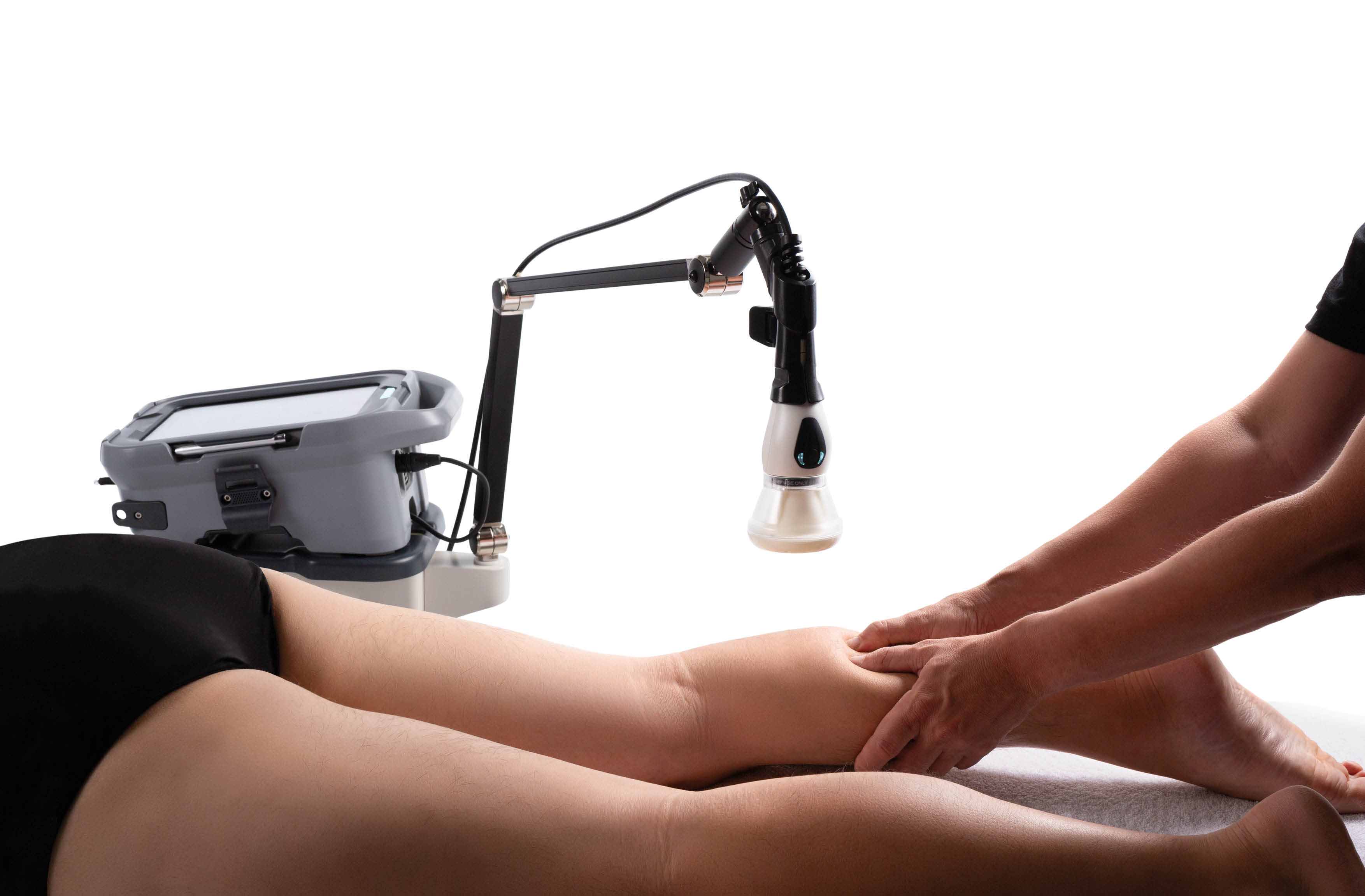

M-Hi laser device - Hands-free treatment modality

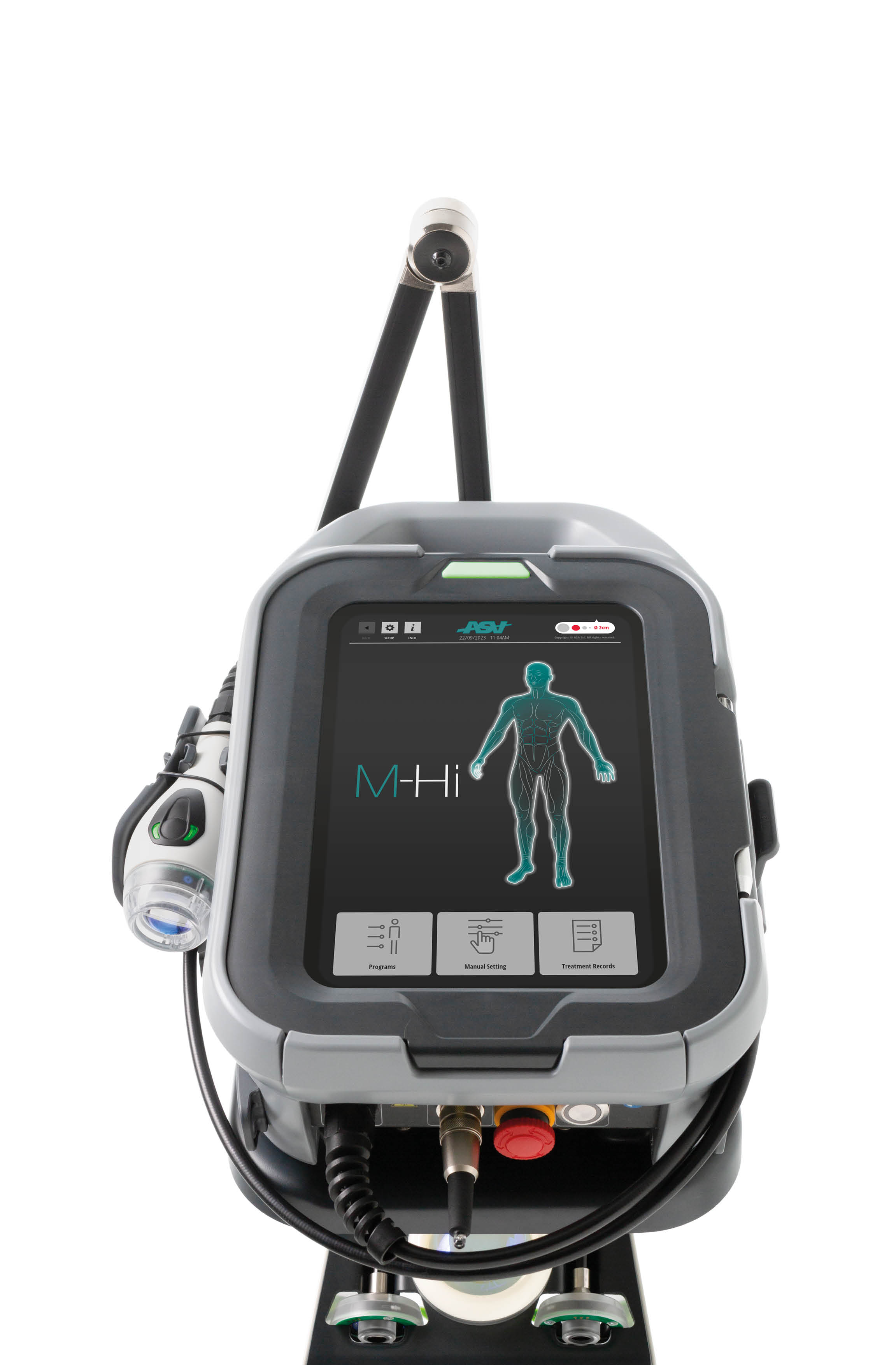

M-Hi laser device - MLS Laser Therapy

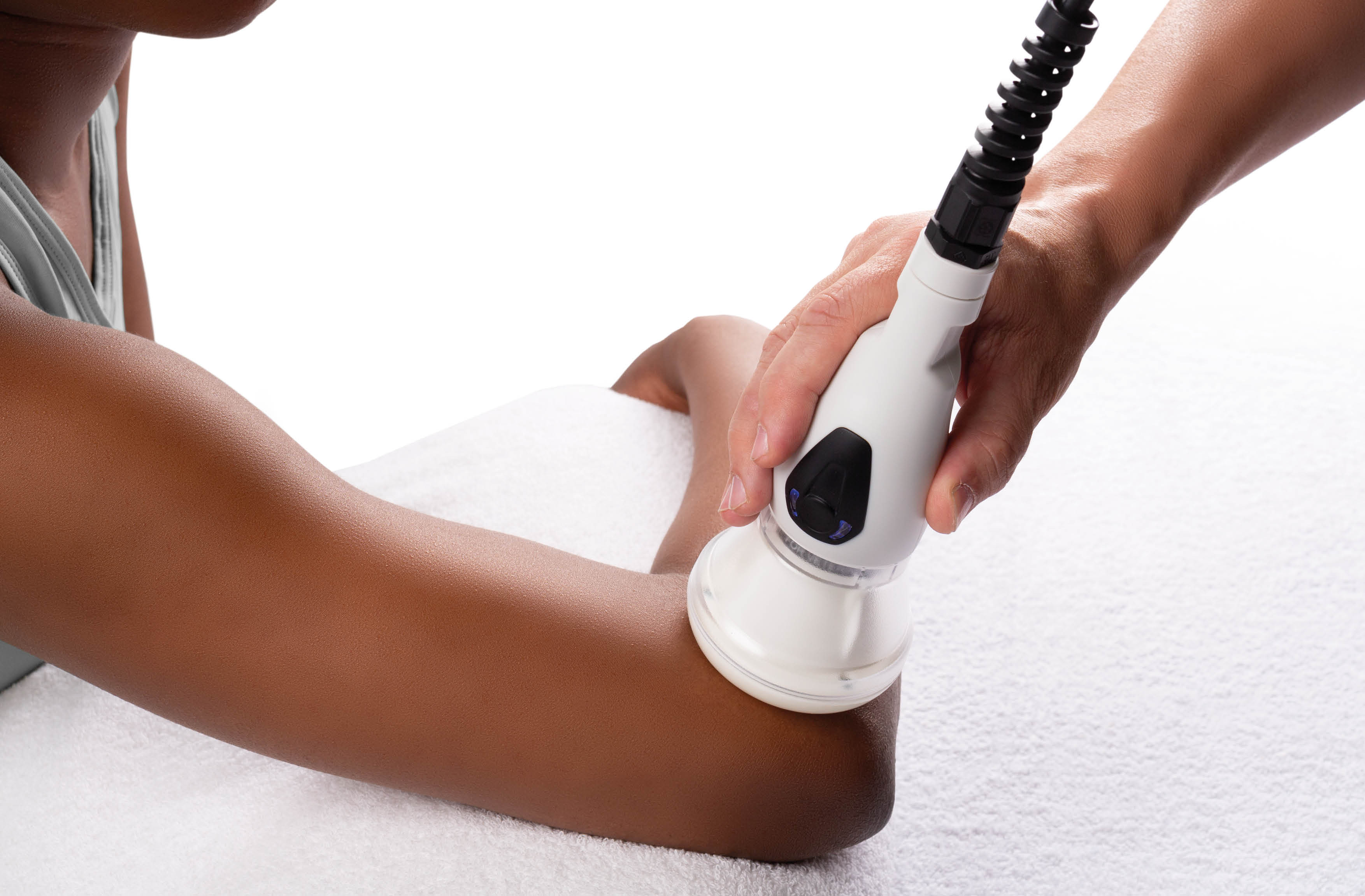

M-Hi laser device - Point-by-point treatment
M-Hi laser device - Point-by-point treatment

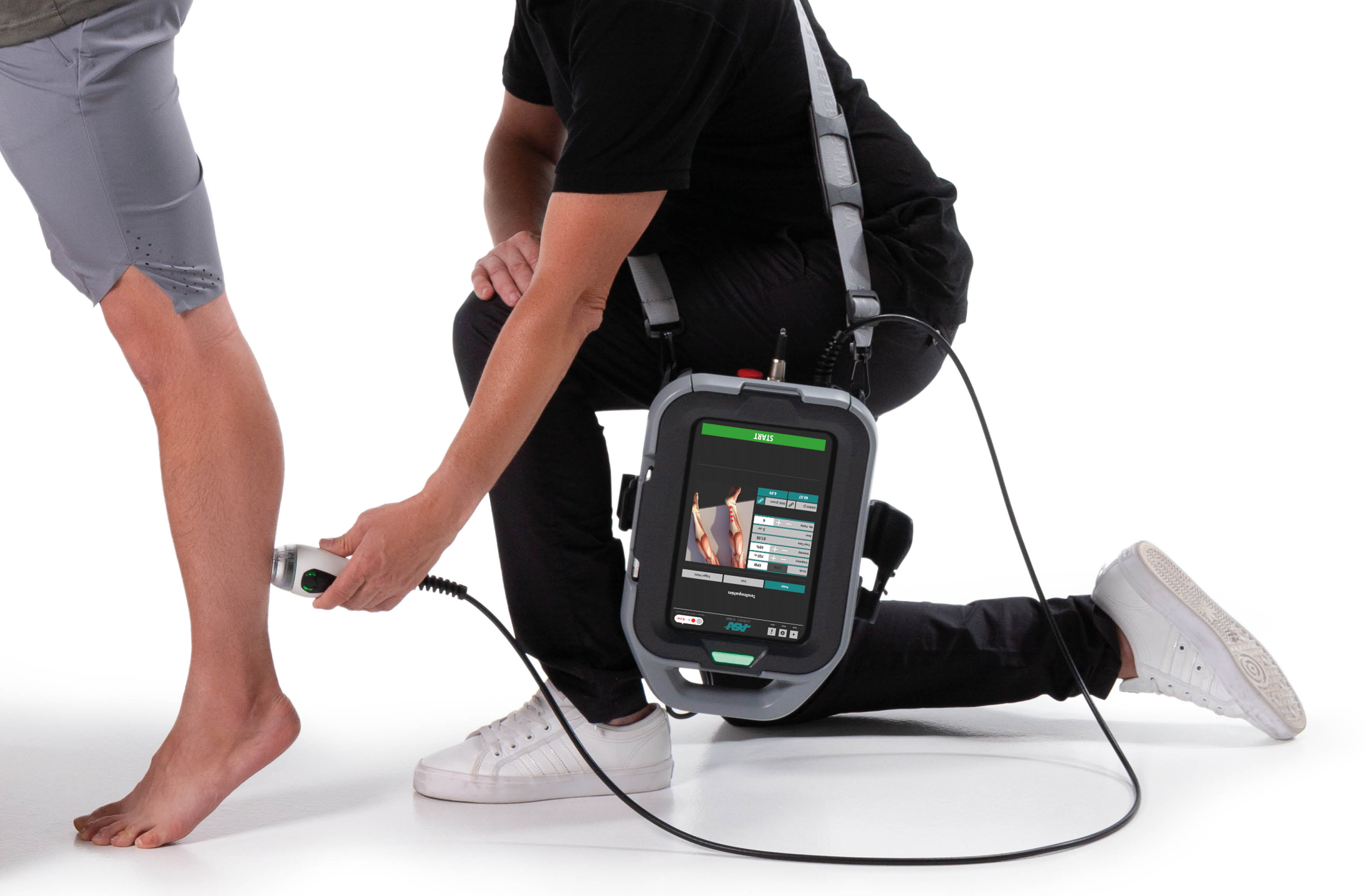

M-Hi laser device - Dynamic & Cordless treatment

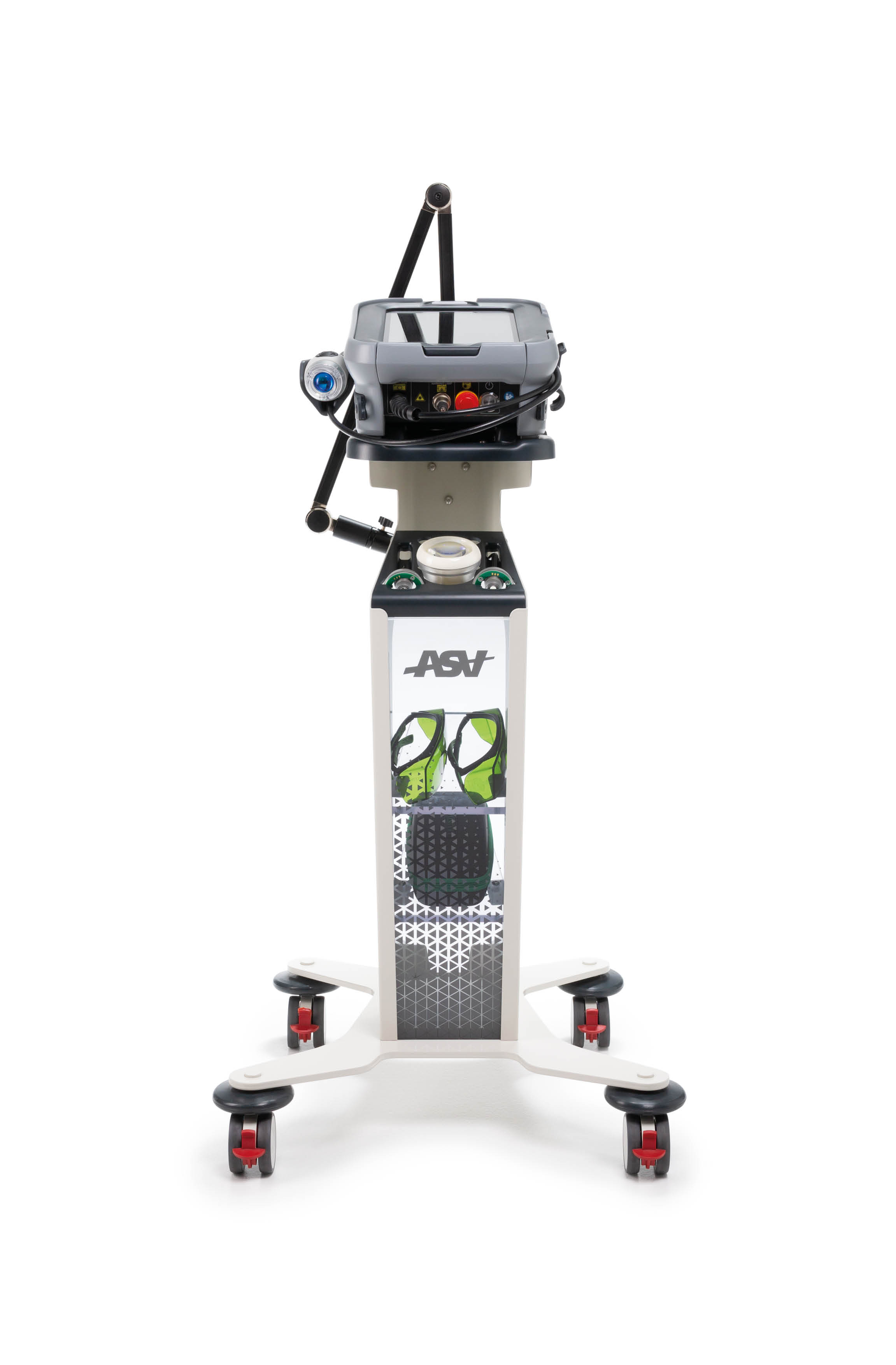

M-Hi laser device with trolley

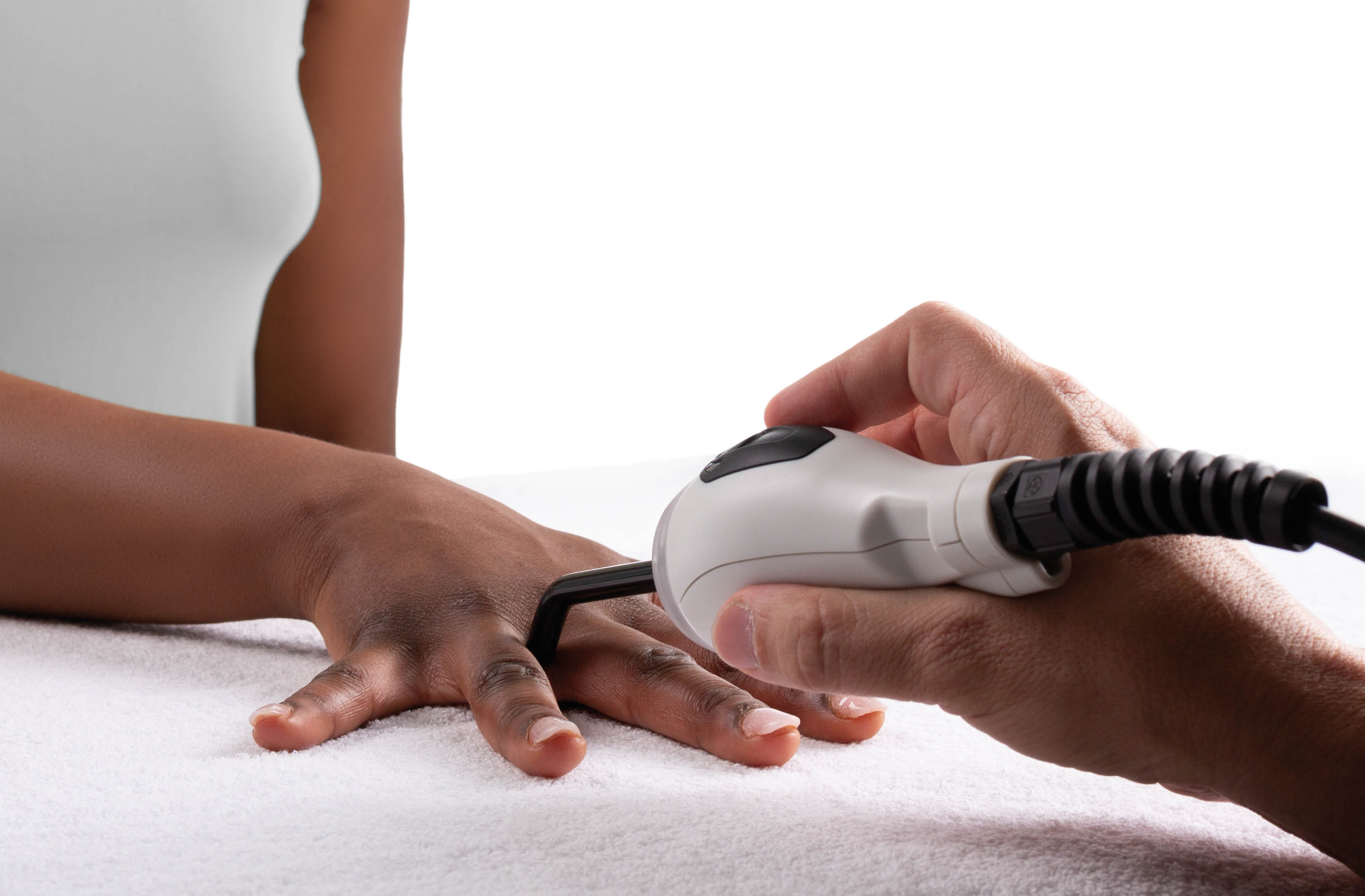

M-Hi laser device - Interdigital MLS laser treatment
M-Hi laser device - MLS Laser Therapy
Technical characteristics
  • Laser source with patented pulse MLS® up to 3.6 W
  • MLS® modulation in CPW and FPW (synchronised emission of Continuous Pulsed Wave and Frequenced Pulsed Wave)
  • Peak power outside handpiece: 270 W
  • Power level from 1% to 100%
  • MLS® pulse modulation frequency from 1 to 2000 Hz in 1 Hz steps
  • Treatment time from 1” to 30’00” in steps of 1”
  • Automatic calculation of the energy emitted according to the parameters set
  • Automatic recognition of the lens and parameters adaptation
  • Lens with target area highlighted by high efficiency red light LEDs
  • 10.1” high brightness LCD touchscreen display
  • Pre-set programs for 11 body districts
  • Programs section for laser puncture
  • Treatment images and videos
  • Possibility of customising each treatment parameter and save personal protocols
  • Treatment log to keep track of patients recovery path
  • Back-up system: a buffer battery keeps the device in stand-by mode when disconnected from the mains to allow the user to move it without having to switch it off
  • Statistics of device usage

POWER SUPPLY

  • 100-240 V AC 50/60 Hz 51-68 VA external power supply unit
  • Lithium-ion battery  (optional) 14,4V  6,9Ah; 0,5 kg

DIMENSIONS AND WEIGHT

  • 30 x 35 x 15 (W x D x H) cm; 4 kg (M-Hi)
  • 52 x 55 x 106 (W x D x H) cm; 23 kg (M-Hi + trolley + arm)

ACCESSORIES PROVIDED

  • N° 2 Laser Safety Goggles

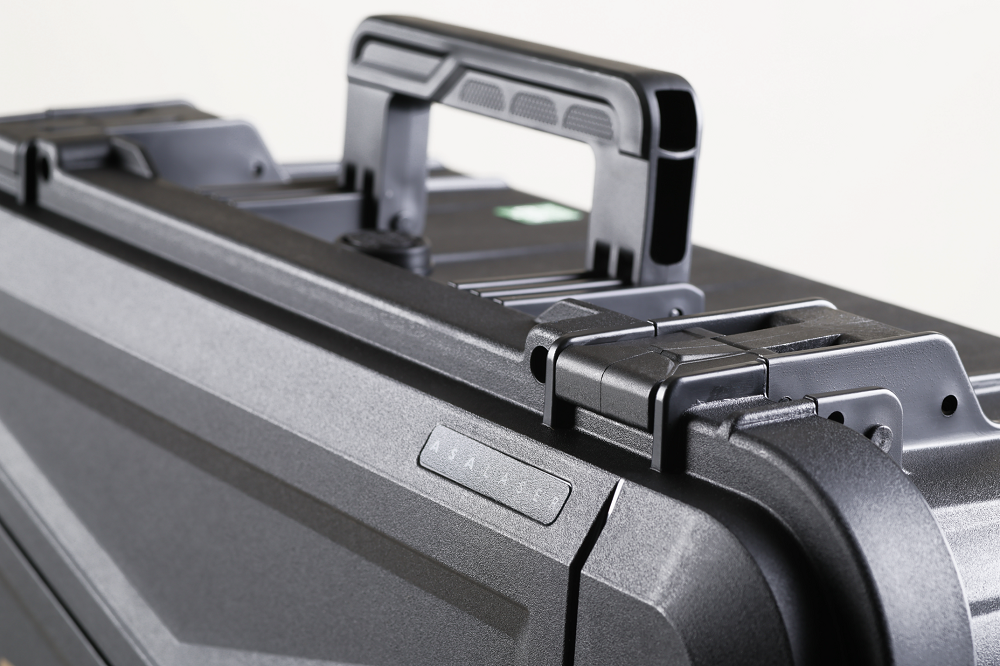

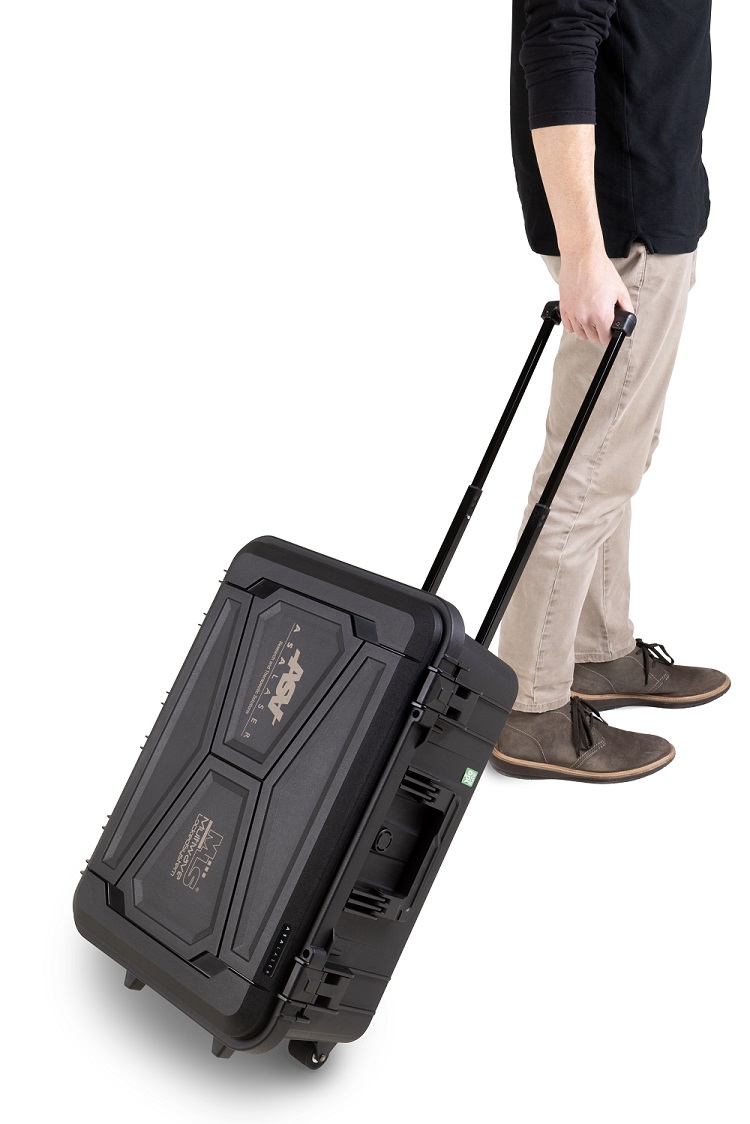

  • Unit carrying case
  • Shoulder strap for portable use
  • Lens case attachable to the shoulder strap
  • 4 lenses:
    • Ø 4 mm (0,13 cm2)
    • Ø 8 mm (0,5 cm2)
    • Ø 2 cm (3 cm2)
    • Ø 5 cm (20 cm2)

OPTIONAL ACCESSORIES

  • Trolley: with storage compartment, 4 swivel wheels and self-locking system equipped with handpiece holder arm for fixed point use featuring sphere and joints
  • Battery kit: consisting of an exclusive charger, battery and connection cable, it allows the device to be used throughout the day without the need to plug it into the mains

ALARMS AND SAFETY EQUIPMENT

  • Laser emission warning light
  • Interlock
  • Acoustic signal adjustable by the operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device
Equipment and security alarms
Specifications
MLS® Laser Therapy

MLS® Laser Therapy

The patented Multiwave Locked System (MLS®) technology overcomes the limits of traditional laser therapy devices (LLLT, class 3B and class 4 lasers).

Discover MLS® Laser Therapy
