A new therapeutic strategy.

HIRO TT is the ultimate application of Hilterapia®, the new therapeutic strategy in the treatment of painful pathologies of the musculoskeletal system based on the principle of thermal exchange.
HIRO TT combines the Nd:YAG pulsed laser source with a cooling system which lowers the temperature of the skin and the underlying tissues, called SmartCooler.

Please accept statistics cookies to watch this video.
Testo a Destra
Immagine 30%/Testo 60%
Immediatezza intervento HIRO TT

Intervention immediacy

Thanks to the effects of the thermal exchange, HIRO TT allows an immediate intervention even in the most acute conditions, such as traumas, muscle lesions and contusions.

Testo a Destra
Immagine 30%/Testo 60%
Intensita e profondita HIRO TT

+ Intensity + Depth

The SmartCooler allows you to make the best use of HILT® pulse, conveying a larger quantity of photons faster and deeper.

Testo a Destra
Immagine 30%/Testo 60%
Dual Parallel Action HIRO TT

Dual and parallel action

The thermal exchange triggered by the SmartCooler and by the high intensity laser source shows more significant and longer-lasting results.

Testo a Destra
Immagine 30%/Testo 60%
1 Fibra ottica 3 modalita HIRO TT

1 optic fiber - 3 laser handpieces

HIRO TT has been designed to connect all three handpieces (Ø 5mm, Ø 10mm, DJD) with a single optic fiber, thus optimising the change of handpiece with a quick and easy connection.

Testo a Destra
Immagine 30%/Testo 60%
Sicurezza HIRO TT

Safety

The proven safety of the HILT® pulse, enhanced by the localised action of the thermal exchange, ensures patient comfort during the treatment also in cases of very acute inflammation and on highly sensitive subjects.

3D HIRO TT

Note: once the product has been zoomed from Desktop, hold the right mouse key pressed to vertically navigate the product. Augmented Reality (AR) is active via smartphone: make HIRO TT part of your centre now!

Please accept statistics cookies to watch this video.
Technical characteristics
  • Laser system employing the patented HILT® pulse
  • High Intensity pulsed Nd:YAG laser source
  • Peak Power (max): over 3,000 W
  • Intensity (max): 15,000 W/cm²
  • Energy per pulse (max): 350 mJ
  • Frequency: 10-30 Hz
  • Average power (max): 10.5 W
  • Fluence (max): 1780 mJ/cm²
  • Pulse duration: ≤ 100 μs
  • Auto-calibration of the laser emission to optimize the power delivery to the tissue
  • “Top-Hat Spot Size” technology to ensure homogeneous distribution of energy over the target area
  • SmartCooler Cooling system: 18°-28°C
  • User interface with 10” graphic color touch screen display
  • Pre-set protocols
    - Standard protocol
    - Fast protocol
    - Focused Protocol (by pathology)
  • Free programs to modify and save personal parameters

ALARMS AND SAFETY FEATURES

  • Acoustic signal of laser emission during the therapy
  • Date and time
  • Language option
  • Machine status signals and alarms
  • Emergency stop button for laser emission
  • Laser emission warning light
  • Interlock
  • Handpiece Test
  • Emission control - Footswitch or Fingerswitch

ACCESSORIES INCLUDED

  • Standard Ø5 mm handpiece for pain therapy
  • Standard Ø10 mm handpiece for pain therapy on sensitive areas
  • Patented DJD handpiece for regenerative therapy
  • SmartCooler applicator
  • N.2 fiber/cable holders
  • N.2 laser safety goggles

SIZE

  • 40 x 85 x 103 cm

WEIGHT

  • 45 kg

POWER SUPPLY

  • 115V/230V 50-60Hz 1840VA
Equipment and security alarms
  • Manipolo standard da Ø5 mm per terapie del dolore
  • Manipolo standard da Ø10 mm per terapie del dolore su aree sensibili
  • Manipolo brevettato DJD per terapia rigenerativa
  • Applicatore SmartCooler
  • N. 2 reggi-fibra



  • Segnale acustico di emissione laser durante la terapia
  • Datario e orologio
  • Cambio lingua
  • Avvisi e allarmi stato macchina
  • Tasto di emergenza arresto emissione laser
  • Lampada di avvertimento di emissione laser
  • Interlock
  • Test Manipolo
  • Controllo dell’emissione da pedale o pulsante
  • N. 2 occhiali protezione laser
Specifications
  • Dimensioni: 40 x 85 x 103 cm
  • Peso: 45 Kg
  • Alimentazione: 230V 50-60Hz 1840 VA
Testo a Destra
Immagine 60%/Testo 40%

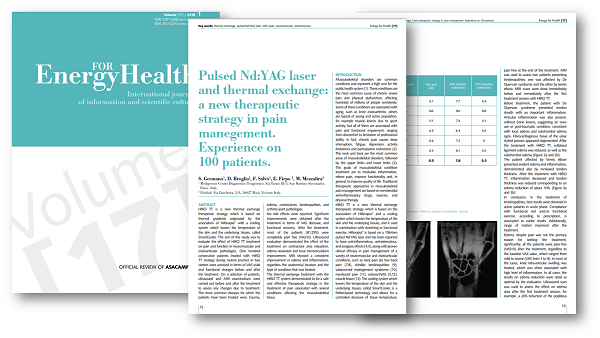

HIRO TT research

Scientifically validated

Clear clinical results show reduced pain, oedema and inflammation.

ASA Research Library

Invest in the well-being of your patients
Calculate your ROI

How many patients do you examine every week with problems with muscles, tendons, ligaments, and joints?
How many of them could you effectively treat with laser therapy?
Calculate the return on investment for an ASA device and contact us for more information.

Calculate your ROI
Patients Per Week treated with Hilterapia®
Avg. Number of treatments
(average between 6-8 for patient)
Price for one Hilterapia® treatment
Additional income per Single Patient thanks to Hilterapia®

Additional weekly income thanks to Hilterapia®

Additional monthly income thanks to Hilterapia®

Additional yearly income thanks to Hilterapia®

Purchase price for the Hilterapia® device
Patients needed to reach the break-even point / re-buy the device

Needed weeks to re-buy the device

Tutto Schermo

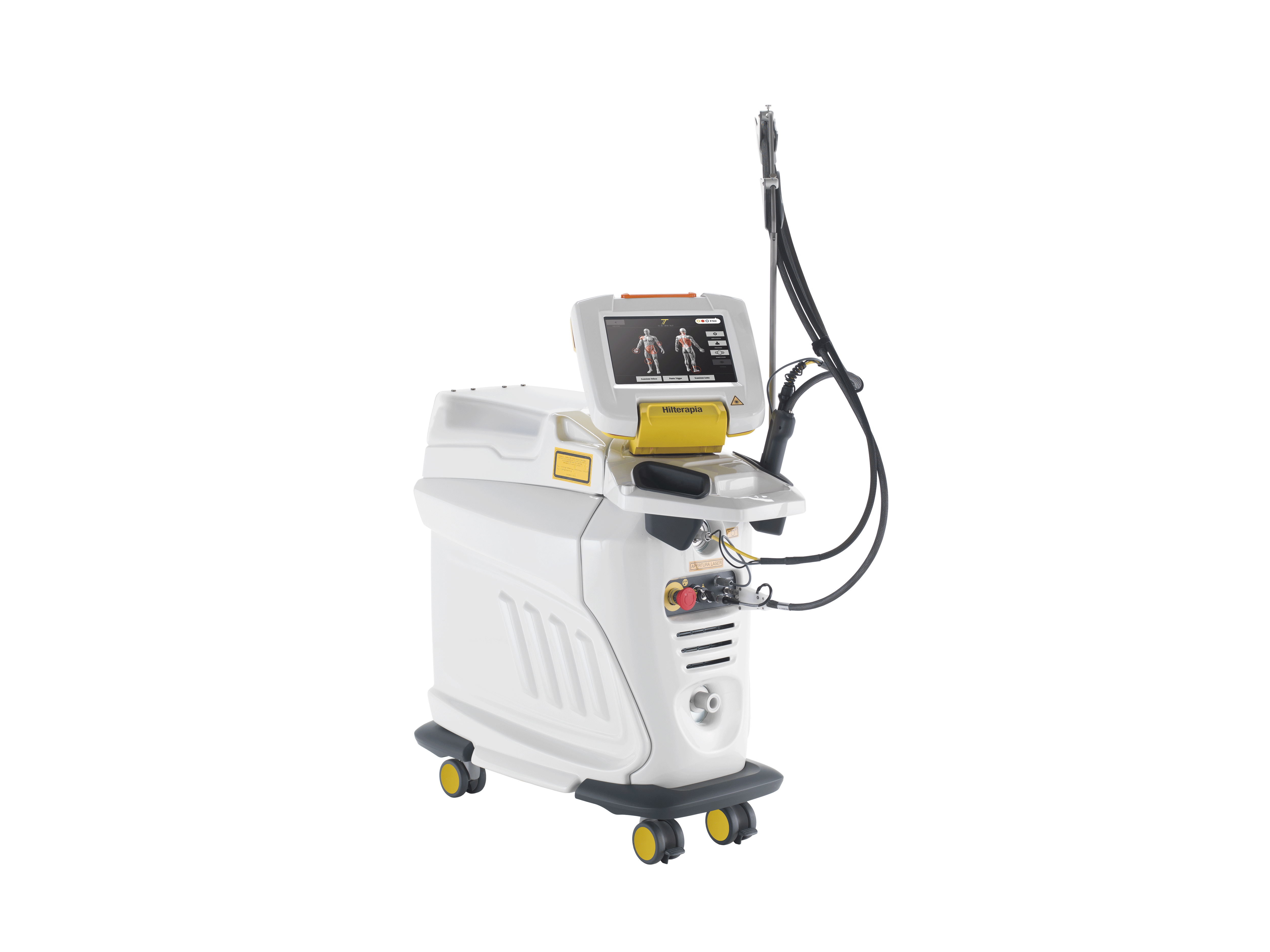

Laser device HIRO TT
Hilterapia®

Hilterapia®

Hilterapia® is a therapeutic technique based on an exclusive high-intensity pulsed Nd:YAG laser emission (up to 15,000 W/cm2) which, while functioning in absolute safety, allows you to obtain an effective therapeutic action in depth.

Discover Hilterapia®
